Details
- •Terminal blocks

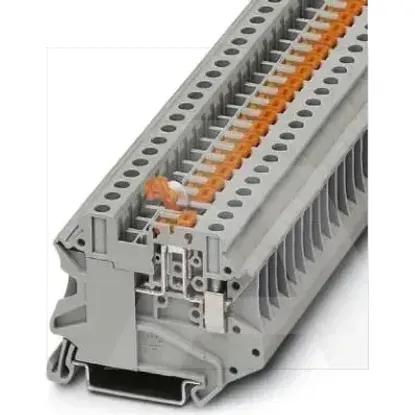

- •(Knife) disconnect terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 6mm²
Internally connected stagesYes
Type of electrical connection 2Screw connection
Connectable conductor cross section solid-core0.14 - 6mm²
Rated voltage500V
Closing plate requiredNo
Type of electrical connection 1Screw connection
Number of clamp positions per level2
Connectable conductor cross section fine-strand with cable end sleeve0.14 - 0.14mm²
Height57.8mm
Depth49.1mm
Type of cross disconnectionNone
Material insulation bodyOther
Width6.2mm
Connectable conductor cross section multi-wired0.14 - 1.5mm²
Inflammability class of insulation material according to with UL94V0
ColourGrey
Mounting methodDIN rail (top hat rail) 35 mm
With integrated test socketNo
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
3046139 | UT 4-MT
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Terminal blocks
- (Knife) disconnect terminal block
- 50 KOM
- PHOENIX
DetailsTechnical specificationsRelated products
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve
0.14 .. 6mm²
Internally connected stages
Type of electrical connection 2
Screw connection
Connectable conductor cross section solid-core
0.14 .. 6mm²
Rated voltage
500V
Closing plate required
Type of electrical connection 1
Screw connection
Number of clamp positions per level
2
Connectable conductor cross section fine-strand with cable end sleeve
0.14 .. 0.14mm²
Height
57.8mm
Depth
49.1mm
Type of cross disconnection
None
Material insulation body
Other
Width
6.2mm
Connectable conductor cross section multi-wired
0.14 .. 1.5mm²
Inflammability class of insulation material according to with UL94
V0
Colour
Grey
Mounting method
DIN rail (top hat rail) 35 mm
With integrated test socket
