Details
- •Terminal blocks

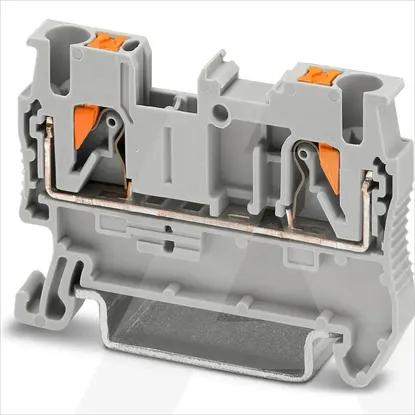

- •Feed-through terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 4mm²
Connectable conductor cross section fine-strand with cable end sleeve0.14 - 0.14mm²
Suitable for conductor materialAluminium/copper
Mounting methodDIN rail (top hat rail) 35 mm
Type of electrical connection 1Other
Material insulation bodyOther
Operating temperature-60 - 110°C
Height48.6mm
Depth35.3mm
Type of electrical connection 2Other
Inflammability class of insulation material according to with UL94V0
Closing plate requiredYes
Width5.2mm
Internally connected stagesYes
Number of levels1
Number of clamp positions per level2
ColourGrey
Rated voltage800V
Connectable conductor cross section solid-core0.14 - 4mm²
Rated current In24A
Related products
Recommended products
From same serie
