Details
- •Terminal blocks
- •Feed-through terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Inflammability class of insulation material according to with UL94V0
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 4mm²
Height48.5mm
Operating temperature-60 - 110°C
Suitable for conductor materialAluminium/copper
Closing plate requiredYes
Depth35.3mm
Material insulation bodyOther
Internally connected stagesYes
Connectable conductor cross section fine-strand with cable end sleeve0.14 - 0.14mm²
Width5.2mm
Number of levels1
Number of clamp positions per level2
Type of electrical connection 1Push-in clamp connection
Type of electrical connection 2Push-in clamp connection
Mounting methodDIN rail (top hat rail) 35 mm
ColourBlue
Rated voltage800V
Connectable conductor cross section solid-core0.14 - 4mm²
Rated current In24A
Related products
Recommended products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

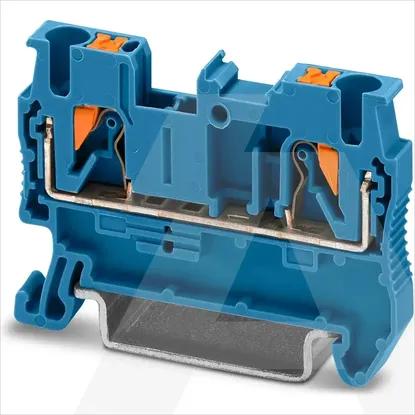

3209523 | PT 2,5 BU
