Details
- •Terminal blocks

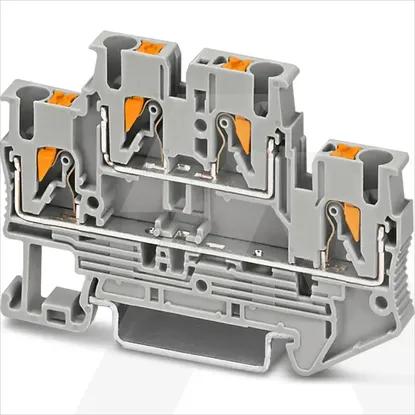

- •Feed-through terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Type of electrical connection 2Other
Connectable conductor cross section fine-strand with cable end sleeve0.14 - 0.14mm²
Connectable conductor cross section fine-strand without cable end sleeve0.14 - 4mm²
Mounting methodDIN rail (top hat rail) 35 mm
Inflammability class of insulation material according to with UL94V0
Width5.2mm
Type of electrical connection 1Other
Internally connected stagesNo
Suitable for conductor materialAluminium/copper
Closing plate requiredYes
Height68mm
Material insulation bodyOther
Depth45.8mm
Number of levels2
Number of clamp positions per level2
ColourGrey
Rated voltage500V
Connectable conductor cross section solid-core0.14 - 4mm²
Rated current In22A
Related products
Recommended products
From same serie
