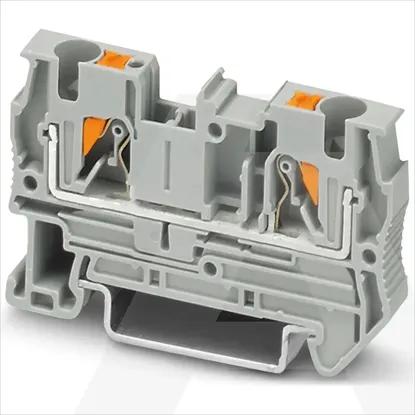

- •Feed-through terminal block
- •50 KOM
- •PHOENIX
Technical specifications
Connectable conductor cross section fine-strand with cable end sleeve0.25 - 0.25mm²
Connectable conductor cross section solid-core0.2 - 6mm²
Connectable conductor cross section fine-strand without cable end sleeve0.2 - 6mm²
Suitable for conductor materialAluminium/copper
Operating temperature-60 - 110°C
Inflammability class of insulation material according to with UL94V0
Internally connected stagesYes
Closing plate requiredYes
Type of electrical connection 2Push-in clamp connection
Type of electrical connection 1Push-in clamp connection
Number of levels1
Rated voltage800V
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Rated current In32A
Width6.2mm
Height36.5mm
Depth56mm
ColourGrey
Material insulation bodyThermoplastic
