Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •ABB
Technical specifications
Number of analogue outputs2
Number of analogue inputs2
Max. output at linear load at rated output voltage11kW
Relative symmetric net frequency tolerance5%
Relative symmetric net voltage tolerance10%
Max. output at quadratic load at rated output voltage11kW
Max. output voltage480V
Mains voltage380 - 480V
Max. output frequency500Hz
Number of phases output3
Mains frequency50/60 Hz
Nominal output current I2N25A
Number of phases input3
Number of digital outputs3
With control elementYes
Number of digital inputs6
Application in industrial area permittedYes
Supporting protocol for DeviceNetYes
Supporting protocol for ModbusYes
Supporting protocol for CANYes
Supporting protocol for ASINo
Supporting protocol for Data-HighwayNo
Supporting protocol for INTERBUSNo
Supporting protocol for LONNo
Supporting protocol for SERCOSNo
Supporting protocol for PROFINET CBANo
Supporting protocol for KNXNo
Supporting protocol for PROFIBUSYes
Supporting protocol for PROFINET IOYes
Application in domestic- and commercial area permittedYes
Supporting protocol for SUCONETNo
Supporting protocol for TCP/IPYes
Supporting protocol for Foundation FieldbusNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for DeviceNet SafetyYes
Supporting protocol for PROFIsafeNo
Number of HW-interfaces RS-4851
Integrated breaking resistanceNo
Type of converterU converter
With PC connectionYes
Number of HW-interfaces serial TTY0
Number of HW-interfaces USB1
Width172mm
Supporting protocol for other bus systemsYes
Number of HW-interfaces RS-4220
Supporting protocol for BACnetNo
With optical interfaceNo
Number of HW-interfaces RS-2320
Degree of protection (IP)IP20
4-quadrant operation possibleNo
Number of HW-interfaces other2
Degree of protection (NEMA)Other
Number of interfaces PROFINET0
Height220mm
Number of HW-interfaces industrial Ethernet0
Supporting protocol for SafetyBUS pNo
Number of HW-interfaces parallel0
Depth208mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

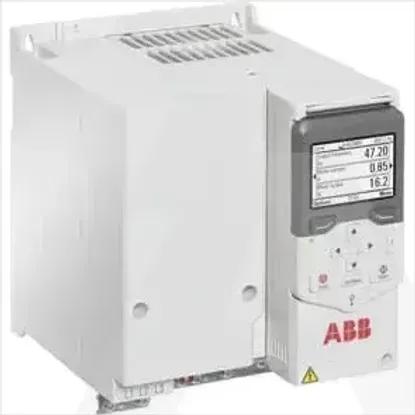

ACS480-04-026A-4
