Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •ABB
Technical specifications
Height240mm
Width262mm
Number of analogue inputs2
Number of digital outputs3
Supporting protocol for INTERBUSNo
Number of analogue outputs2
Number of HW-interfaces USB1
Supporting protocol for ModbusYes
Number of HW-interfaces RS-4220
With control elementNo
Number of digital inputs6
Number of HW-interfaces other2
Number of HW-interfaces parallel0
Supporting protocol for Data-HighwayNo
With optical interfaceNo
Supporting protocol for KNXNo
Supporting protocol for ASINo
Supporting protocol for DeviceNetYes
Number of HW-interfaces serial TTY0
Supporting protocol for TCP/IPYes
Supporting protocol for CANYes
Number of HW-interfaces RS-2320
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces RS-4851
Supporting protocol for LONNo
Supporting protocol for PROFIBUSYes
Depth213mm
Supporting protocol for INTERBUS-SafetyNo
Mains frequency50/60 Hz
Mains voltage380 - 480V
Integrated breaking resistanceNo
Application in domestic- and commercial area permittedYes
Supporting protocol for SERCOSNo
Type of converterU converter
Degree of protection (IP)IP20
Supporting protocol for AS-Interface Safety at WorkNo
Max. output at linear load at rated output voltage22kW
Supporting protocol for Foundation FieldbusNo
Supporting protocol for DeviceNet SafetyYes
Relative symmetric net frequency tolerance5%
Number of phases output3
Supporting protocol for EtherNet/IPYes
With PC connectionNo
Supporting protocol for SUCONETNo
Max. output frequency500Hz
Application in industrial area permittedYes
Max. output at quadratic load at rated output voltage22kW
Relative symmetric net voltage tolerance10%
4-quadrant operation possibleNo
Supporting protocol for other bus systemsYes
Number of interfaces PROFINET0
Number of phases input3
Nominal output current I2N45A
Supporting protocol for PROFINET IOYes
Max. output voltage480V
Supporting protocol for BACnetNo
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Degree of protection (NEMA)Other
Supporting protocol for PROFINET CBANo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

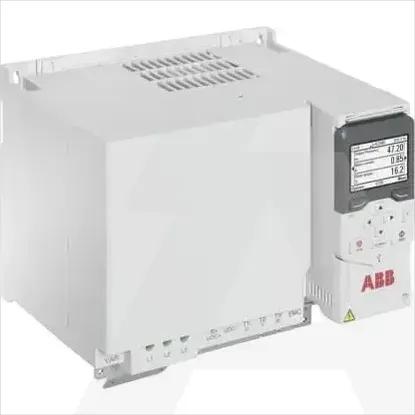

ACS480-04-046A-4
