Details
- •Programmable logic controllers PLC
- •Logic module
- •1 KOM
- •EATON
Technical specifications
Number of analogue outputs0
Width72mm
With time switch clockYes
Number of digital outputs4
Switching current8A
Number of digital inputs4
Number of analogue inputs0
With displayYes
Depth58mm
Power consumption3W
Height90mm
Suitable for safety functionsNo
ExpandableYes
Supporting protocol for LONNo
Number of HW-interfaces industrial Ethernet1
Voltage type of supply voltageAC/DC
Number of HW-interfaces RS-2320
With optical interfaceNo
RedundancyNo
Number of HW-interfaces RS-4220
Supporting protocol for ASINo
Number of HW-interfaces other0
Supporting protocol for Data-HighwayNo
Supporting protocol for other bus systemsNo
Number of HW-interfaces RS-4850
Supporting protocol for TCP/IPYes
Number of HW-interfaces parallel0
Number of HW-interfaces serial TTY0
Supporting protocol for INTERBUSNo
Supporting protocol for KNXNo
Supporting protocol for ModbusYes
Supporting protocol for SUCONETNo
Supporting protocol for CANNo
Supporting protocol for DeviceNetNo
Supporting protocol for PROFIBUSNo
Number of HW-interfaces USB0
Explosion safety category for dustNone
With relay outputYes
Appendant operation agent (Ex ia)No
Rail mounting possibleYes
Explosion safety category for gasNone
Appendant operation agent (Ex ib)No
Degree of protection (IP)IP20
Supporting protocol for SERCOSNo
Front built-in possibleYes
Supporting protocol for AS-Interface Safety at WorkNo
Radio standard BluetoothNo
Supporting protocol for DeviceNet SafetyNo
Number of HW-interfaces Wireless0
Rack-assembly possibleNo
Wall mounting/direct mountingYes
Number of interfaces PROFINET0
Supporting protocol for EtherNet/IPNo
Expansion deviceNo
Supporting protocol for INTERBUS-SafetyNo
Radio standard Wi-Fi 802.11No
Performance level according to EN ISO 13849-1None
IO link masterNo
Basic deviceYes
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Supply voltage AC 50 Hz20.4 - 26.4V
Supply voltage AC 60 Hz20.4 - 26.4V
Supply voltage DC10.2 - 28.8V
Supporting protocol for PROFIsafeNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IONo
Certified for UL hazardous location division 1No
Certified for UL hazardous location division 2Yes
Radio standard UMTSNo
SIL according to IEC 61508None
Certified for UL hazardous location class IYes
Certified for UL hazardous location class IIINo
Radio standard GPRSNo
Supporting protocol for EtherCATNo
Certified for UL hazardous location class IINo
Certified for UL hazardous location group A (acetylene)Yes
Radio standard GSMNo
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group G (non-conductive dusts)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group D (propane)Yes
Certified for UL hazardous location group C (ethylene)Yes
Certified for UL hazardous location group F (carbonaceous dusts)No
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

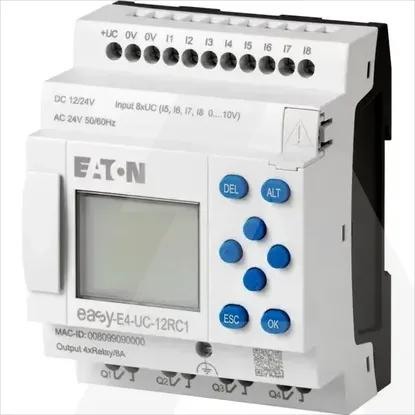

EASY-E4-UC-12RC1
