Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Voltage typeAC
Mounting methodDIN rail
Rated voltage230V
Rated current25A
Built-in depth44mm
Rated insulation voltage Ui250V
Leakage current typeB
Surge current capacity3kA
Pollution degree3
Selective protectionNo
Width in number of modular spacings4
Number of poles2
Rated fault current0.03A
Short-circuit breaking capacity (Icw)-kA
Short-time delayed trippingNo
Additional equipment possibleYes
Frequency50 Hz
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp6kV
Connectable conductor cross section solid-core1 - 35mm²
Connectable conductor cross section multi-wired1 - 25mm²
Ambient temperature during operating-25 - 60°C
With interlocking deviceNo
Explosion-proofNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

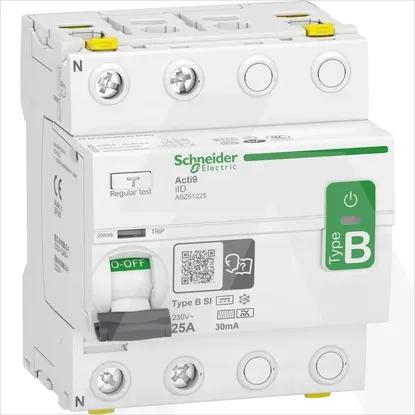

A9Z61225 | Dif. Zaš. Skl. iID 2P 25A 30MA TIP B-si
