Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Voltage typeAC
Built-in depth44mm
Rated current40A
Rated voltage230V
Mounting methodDIN rail
Leakage current typeB
Width in number of modular spacings4
Explosion-proofNo
Rated fault current0.03A
Degree of protection (IP)IP20
Rated insulation voltage Ui250V
Short-time delayed trippingNo
Selective protectionNo
Frequency50 Hz
Number of poles2
Pollution degree3
Short-circuit breaking capacity (Icw)-kA
With interlocking deviceNo
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired1 - 25mm²
Surge current capacity3kA
Connectable conductor cross section solid-core1 - 35mm²
Rated impulse withstand voltage Uimp6kV
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

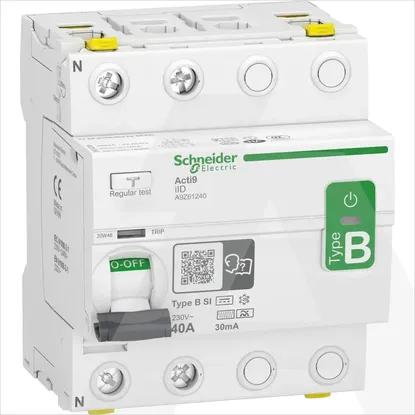

A9Z61240 | Dif. Zaš. Skl. iID 2P 40A 30MA TIP B-si
