Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated fault current0.03A
Mounting methodDIN rail
Rated insulation voltage Ui250V
Number of poles2
Selective protectionNo
Surge current capacity3kA
Pollution degree3
Leakage current typeB
Voltage typeAC
Built-in depth44mm
Short-circuit breaking capacity (Icw)-kA
Rated voltage230V
Rated current63A
Width in number of modular spacings4
Explosion-proofNo
Short-time delayed trippingNo
Frequency50 Hz
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired1 - 25mm²
Additional equipment possibleYes
Connectable conductor cross section solid-core1 - 35mm²
Rated impulse withstand voltage Uimp6kV
Ambient temperature during operating-25 - 60°C
With interlocking deviceNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

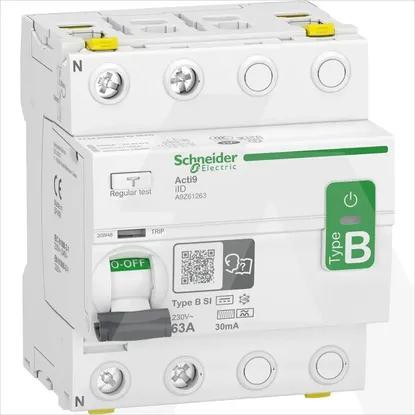

A9Z61263 | Dif. Zaš. Skl. iID 2P 63A 30MA TIP B-si
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Rated fault current
0.03A
Mounting method
DIN rail
Rated insulation voltage Ui
250V
Number of poles
2
Selective protection
Surge current capacity
3kA
Pollution degree
3
Leakage current type
B
Voltage type
AC
Built-in depth
44mm
Short-circuit breaking capacity (Icw)
-kA
Rated voltage
230V
Rated current
63A
Width in number of modular spacings
4
Explosion-proof
Short-time delayed tripping
Frequency
50 Hz
Degree of protection (IP)
IP20
Connectable conductor cross section multi-wired
1 .. 25mm²
Additional equipment possible
Connectable conductor cross section solid-core
1 .. 35mm²
Rated impulse withstand voltage Uimp
6kV
Ambient temperature during operating
-25 .. 60°C
With interlocking device
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
