Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated insulation voltage Ui500V
Rated voltage400V
Voltage typeAC
Mounting methodDIN rail
Pollution degree3
Built-in depth44mm
Short-circuit breaking capacity (Icw)-kA
Leakage current typeB
Explosion-proofNo
Surge current capacity3kA
Short-time delayed trippingNo
Frequency50 Hz
Selective protectionNo
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section solid-core1 - 35mm²
Degree of protection (IP)IP20
With interlocking deviceNo
Connectable conductor cross section multi-wired1 - 25mm²
Rated impulse withstand voltage Uimp6kV
Rated current40A
Rated fault current0.03A
Number of poles4
Width in number of modular spacings4
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

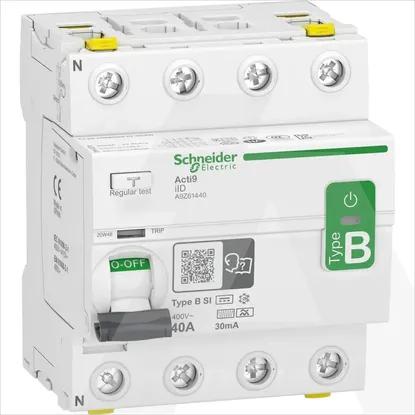

A9Z61440 | Dif. Zaš. Skl. iID 4P 40A 30MA TIP B-si
