Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Voltage typeAC
Number of poles4
Rated current80A
Built-in depth44mm
Rated voltage400V
Rated insulation voltage Ui500V
Mounting methodDIN rail
Rated fault current0.03A
Frequency50 Hz
Degree of protection (IP)IP20
Width in number of modular spacings4
Short-circuit breaking capacity (Icw)-kA
Additional equipment possibleYes
Connectable conductor cross section multi-wired1 - 25mm²
Pollution degree3
Explosion-proofNo
Connectable conductor cross section solid-core1 - 35mm²
Ambient temperature during operating-25 - 60°C
Short-time delayed trippingNo
Leakage current typeB
Rated impulse withstand voltage Uimp6kV
Selective protectionNo
With interlocking deviceNo
Surge current capacity3kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

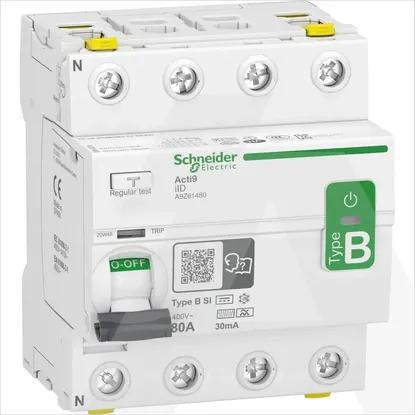

A9Z61480 | Dif. Zaš. Skl. iID 4P 80A 30MA TIP B-si
