Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated insulation voltage Ui250V
Voltage typeAC
Selective protectionNo
Pollution degree3
Built-in depth44mm
Short-circuit breaking capacity (Icw)-kA
Mounting methodDIN rail
Surge current capacity3kA
Short-time delayed trippingNo
Explosion-proofNo
Connectable conductor cross section solid-core1 - 35mm²
With interlocking deviceNo
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section multi-wired1 - 25mm²
Degree of protection (IP)IP20
Frequency50 Hz
Rated impulse withstand voltage Uimp6kV
Additional equipment possibleYes
Width in number of modular spacings2
Rated current25A
Rated voltage230V
Number of poles2
Rated fault current0.3A
Leakage current typeB
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

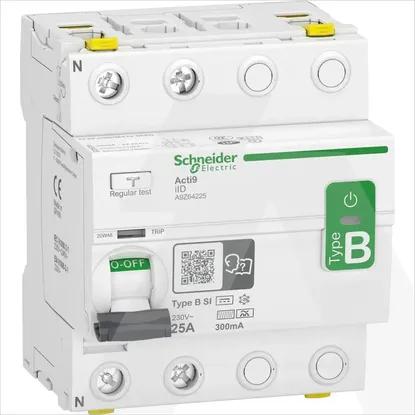

A9Z64225 | Dif. Zaš. Skl. iID 2P 25A 300MA TIP B-si
