Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Mounting methodDIN rail
Rated insulation voltage Ui250V
Rated voltage230V
Voltage typeAC
Built-in depth44mm
Short-circuit breaking capacity (Icw)-kA
Surge current capacity3kA
Rated current40A
Leakage current typeB
Number of poles2
Width in number of modular spacings4
Pollution degree3
Selective protectionNo
Rated fault current0.3A
Short-time delayed trippingNo
Explosion-proofNo
Frequency50 Hz
Connectable conductor cross section solid-core1 - 35mm²
Connectable conductor cross section multi-wired1 - 25mm²
Rated impulse withstand voltage Uimp6kV
Degree of protection (IP)IP20
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
With interlocking deviceNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

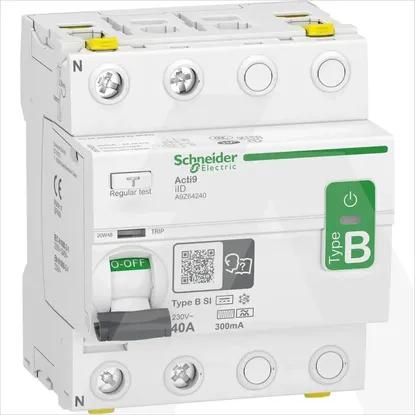

A9Z64240 | Dif. Zaš. Skl. iID 2P 40A 300MA TIP B-si
