Technical specifications
Selective protectionNo
Mounting methodDIN rail
Rated insulation voltage Ui250V
Rated fault current0.3A
Leakage current typeB
Surge current capacity3kA
Number of poles2
Short-circuit breaking capacity (Icw)-kA
Pollution degree3
Width in number of modular spacings4
Rated voltage230V
Voltage typeAC
Rated current63A
Built-in depth44mm
Explosion-proofNo
Frequency50 Hz
Connectable conductor cross section solid-core1 - 35mm²
With interlocking deviceNo
Short-time delayed trippingNo
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired1 - 25mm²
Rated impulse withstand voltage Uimp6kV
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

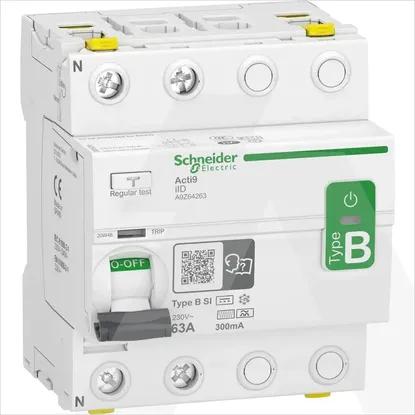

A9Z64263 | Dif. Zaš. Skl. iID 2P 63A 300MA TIP B-si
