Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Built-in depth44mm
Voltage typeAC
Mounting methodDIN rail
Rated current40A
Rated insulation voltage Ui500V
Rated voltage400V
Short-circuit breaking capacity (Icw)-kA
Selective protectionNo
Leakage current typeB
Rated fault current0.3A
Number of poles4
Surge current capacity3kA
Pollution degree3
Rated impulse withstand voltage Uimp6kV
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
Frequency50 Hz
Connectable conductor cross section solid-core1 - 35mm²
Short-time delayed trippingNo
Connectable conductor cross section multi-wired1 - 25mm²
Degree of protection (IP)IP20
Width in number of modular spacings4
With interlocking deviceNo
Explosion-proofNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

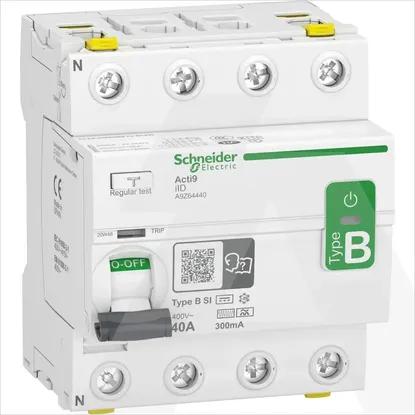

A9Z64440 | Dif. Zaš. Skl. iID 4P 40A 300MA TIP B-si
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Built-in depth
44mm
Voltage type
AC
Mounting method
DIN rail
Rated current
40A
Rated insulation voltage Ui
500V
Rated voltage
400V
Short-circuit breaking capacity (Icw)
-kA
Selective protection
Leakage current type
B
Rated fault current
0.3A
Number of poles
4
Surge current capacity
3kA
Pollution degree
3
Rated impulse withstand voltage Uimp
6kV
Additional equipment possible
Ambient temperature during operating
-25 .. 60°C
Frequency
50 Hz
Connectable conductor cross section solid-core
1 .. 35mm²
Short-time delayed tripping
Connectable conductor cross section multi-wired
1 .. 25mm²
Degree of protection (IP)
IP20
Width in number of modular spacings
4
With interlocking device
Explosion-proof
