Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated current63A
Rated insulation voltage Ui500V
Mounting methodDIN rail
Voltage typeAC
Built-in depth44mm
Rated voltage400V
Selective protectionNo
Surge current capacity3kA
Rated fault current0.3A
Leakage current typeB
Pollution degree3
Short-circuit breaking capacity (Icw)-kA
Number of poles4
Width in number of modular spacings4
Frequency50 Hz
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired1 - 25mm²
Short-time delayed trippingNo
Explosion-proofNo
Connectable conductor cross section solid-core1 - 35mm²
With interlocking deviceNo
Ambient temperature during operating-25 - 60°C
Additional equipment possibleYes
Rated impulse withstand voltage Uimp6kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

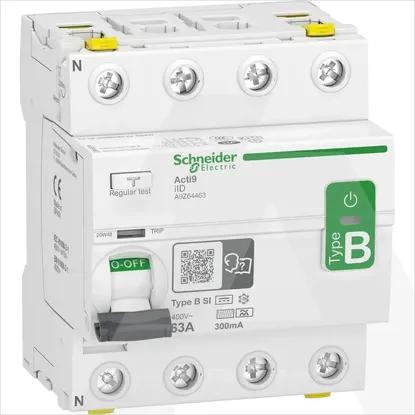

A9Z64463 | Dif. Zaš. Skl. iID 4P 63A 300MA TIP B-si
