Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Rated voltage400V
Voltage typeAC
Leakage current typeB
Rated current80A
Short-circuit breaking capacity (Icw)-kA
Surge current capacity3kA
Rated fault current0.3A
Built-in depth44mm
Mounting methodDIN rail
Selective protectionNo
Rated insulation voltage Ui500V
Number of poles4
Connectable conductor cross section multi-wired1 - 25mm²
Pollution degree3
Short-time delayed trippingNo
Frequency50 Hz
Connectable conductor cross section solid-core1 - 35mm²
Explosion-proofNo
Width in number of modular spacings4
Degree of protection (IP)IP20
Rated impulse withstand voltage Uimp6kV
Ambient temperature during operating-25 - 60°C
With interlocking deviceNo
Additional equipment possibleYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

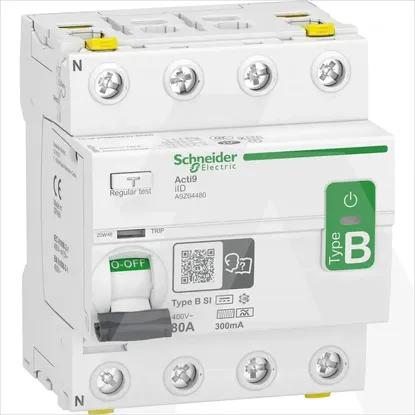

A9Z64480 | Dif. Zaš. Skl. iID 4P 80A 300MA TIP B-si
