Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Mounting methodDIN rail
Built-in depth44mm
Rated insulation voltage Ui500V
Leakage current typeB
Selective protectionYes
Voltage typeAC
Short-time delayed trippingYes
Pollution degree3
Short-circuit breaking capacity (Icw)-kA
Surge current capacity5kA
Rated voltage400V
Connectable conductor cross section solid-core1 - 35mm²
Degree of protection (IP)IP20
Frequency50 Hz
Connectable conductor cross section multi-wired1 - 25mm²
Ambient temperature during operating-25 - 60°C
With interlocking deviceNo
Rated impulse withstand voltage Uimp6kV
Number of poles4
Rated fault current0.3A
Additional equipment possibleYes
Rated current40A
Explosion-proofNo
Width in number of modular spacings4
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

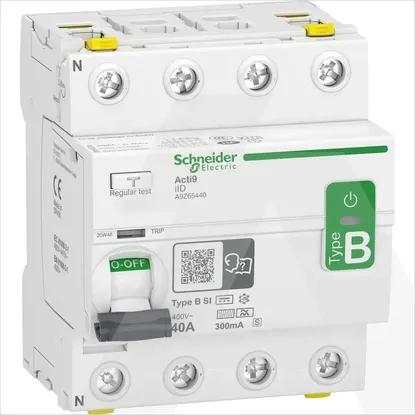

A9Z65440 | Dif. Zaš. Skl. iID 4P 40A 300MA TIP B-si
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Mounting method
DIN rail
Built-in depth
44mm
Rated insulation voltage Ui
500V
Leakage current type
B
Selective protection
Voltage type
AC
Short-time delayed tripping
Pollution degree
3
Short-circuit breaking capacity (Icw)
-kA
Surge current capacity
5kA
Rated voltage
400V
Connectable conductor cross section solid-core
1 .. 35mm²
Degree of protection (IP)
IP20
Frequency
50 Hz
Connectable conductor cross section multi-wired
1 .. 25mm²
Ambient temperature during operating
-25 .. 60°C
With interlocking device
Rated impulse withstand voltage Uimp
6kV
Number of poles
4
Rated fault current
0.3A
Additional equipment possible
Rated current
40A
Explosion-proof
Width in number of modular spacings
4
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
