Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Frequency50 Hz
Surge current capacity5kA
Degree of protection (IP)IP20
Rated insulation voltage Ui500V
Built-in depth44mm
Ambient temperature during operating-25 - 60°C
With interlocking deviceNo
Additional equipment possibleYes
Explosion-proofNo
Short-circuit breaking capacity (Icw)-kA
Rated current80A
Connectable conductor cross section multi-wired1 - 25mm²
Rated voltage400V
Selective protectionYes
Short-time delayed trippingYes
Connectable conductor cross section solid-core1 - 35mm²
Leakage current typeB
Voltage typeAC
Pollution degree3
Width in number of modular spacings4
Mounting methodDIN rail
Number of poles4
Rated fault current0.3A
Rated impulse withstand voltage Uimp6kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

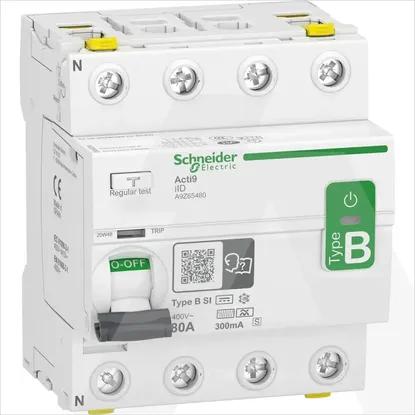

A9Z65480 | Dif. Zaš. Skl. iID 4P 80A 300MA TIP B-si
