Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Voltage typeAC
Rated voltage400V
Rated current40A
Rated insulation voltage Ui500V
Rated fault current0.5A
Built-in depth44mm
Number of poles4
Mounting methodDIN rail
Leakage current typeB
Short-circuit breaking capacity (Icw)-kA
Selective protectionNo
Width in number of modular spacings4
Pollution degree3
Explosion-proofNo
Ambient temperature during operating-25 - 60°C
Frequency50 Hz
With interlocking deviceNo
Short-time delayed trippingNo
Connectable conductor cross section multi-wired1 - 25mm²
Rated impulse withstand voltage Uimp6kV
Connectable conductor cross section solid-core1 - 35mm²
Additional equipment possibleYes
Surge current capacity3kA
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

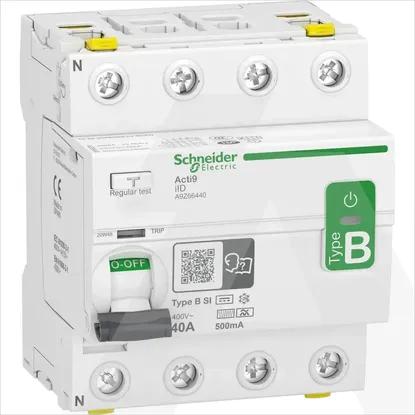

A9Z66440 | Dif. Zaš. Skl. iID 4P 40A 500MA TIP B-si
