Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of poles4
Voltage typeAC
Mounting methodDIN rail
Rated voltage400V
Built-in depth44mm
Rated insulation voltage Ui500V
Rated current63A
Degree of protection (IP)IP20
Width in number of modular spacings4
Rated impulse withstand voltage Uimp6kV
Short-time delayed trippingNo
Rated fault current0.5A
Frequency50 Hz
With interlocking deviceNo
Ambient temperature during operating-25 - 60°C
Connectable conductor cross section solid-core1 - 35mm²
Short-circuit breaking capacity (Icw)-kA
Additional equipment possibleYes
Selective protectionNo
Connectable conductor cross section multi-wired1 - 25mm²
Surge current capacity3kA
Explosion-proofNo
Pollution degree3
Leakage current typeB
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

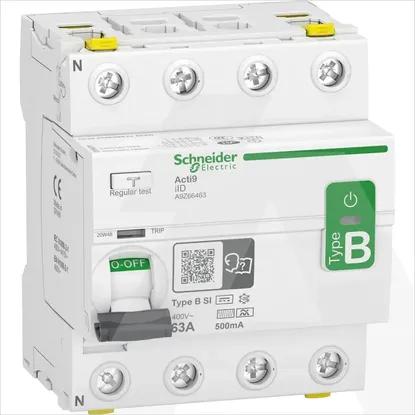

A9Z66463 | Dif. Zaš. Skl. iID 4P 63A 500MA TIP B-si
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- SCHNEIDER
DetailsTechnical specifications
Technical specifications
Number of poles
4
Voltage type
AC
Mounting method
DIN rail
Rated voltage
400V
Built-in depth
44mm
Rated insulation voltage Ui
500V
Rated current
63A
Degree of protection (IP)
IP20
Width in number of modular spacings
4
Rated impulse withstand voltage Uimp
6kV
Short-time delayed tripping
Rated fault current
0.5A
Frequency
50 Hz
With interlocking device
Ambient temperature during operating
-25 .. 60°C
Connectable conductor cross section solid-core
1 .. 35mm²
Short-circuit breaking capacity (Icw)
-kA
Additional equipment possible
Selective protection
Connectable conductor cross section multi-wired
1 .. 25mm²
Surge current capacity
3kA
Explosion-proof
Pollution degree
3
Leakage current type
B
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
