Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of poles4
Rated voltage400V
Mounting methodDIN rail
Rated current80A
Voltage typeAC
Rated insulation voltage Ui500V
Built-in depth44mm
Connectable conductor cross section multi-wired1 - 25mm²
Leakage current typeB
Frequency50 Hz
With interlocking deviceNo
Degree of protection (IP)IP20
Connectable conductor cross section solid-core1 - 35mm²
Rated fault current0.5A
Pollution degree3
Explosion-proofNo
Short-circuit breaking capacity (Icw)-kA
Selective protectionNo
Surge current capacity3kA
Short-time delayed trippingNo
Ambient temperature during operating-25 - 60°C
Additional equipment possibleYes
Width in number of modular spacings4
Rated impulse withstand voltage Uimp6kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

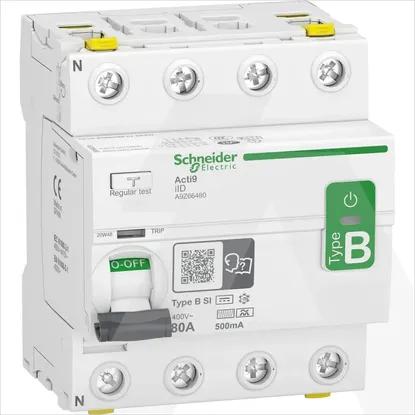

A9Z66480 | Dif. Zaš. Skl. iID 4P 80A 500MA TIP B-si
