Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of digital outputs3
Height340mm
With control elementYes
Number of digital inputs7
Width250mm
Depth182mm
Number of HW-interfaces RS-2320
Number of HW-interfaces industrial Ethernet0
Number of analogue outputs1
Number of analogue inputs3
Supporting protocol for LONNo
Number of HW-interfaces other1
Number of HW-interfaces USB0
Number of HW-interfaces serial TTY0
Supporting protocol for KNXNo
Supporting protocol for PROFIBUSYes
Number of HW-interfaces RS-4220
Degree of protection (IP)IP65
Supporting protocol for SUCONETNo
Supporting protocol for TCP/IPYes
Supporting protocol for other bus systemsYes
Supporting protocol for INTERBUSNo
Supporting protocol for Data-HighwayNo
Supporting protocol for CANYes
Number of HW-interfaces RS-4851
With optical interfaceNo
Supporting protocol for ASINo
Supporting protocol for ModbusYes
Supporting protocol for DeviceNetYes
4-quadrant operation possibleYes
Mains frequency50/60 Hz
Supporting protocol for SERCOSNo
With PC connectionYes
Mains voltage200 - 240V
Supporting protocol for INTERBUS-SafetyNo
Number of HW-interfaces parallel0
Type of converterU converter
Supporting protocol for AS-Interface Safety at WorkNo
Application in industrial area permittedYes
Application in domestic- and commercial area permittedNo
Number of phases input1
Supporting protocol for PROFINET IOYes
Max. output frequency599Hz
Max. output at linear load at rated output voltage0.37kW
Number of phases output3
Max. output at quadratic load at rated output voltage0.37kW
Number of interfaces PROFINET0
Relative symmetric net frequency tolerance5%
Relative symmetric net voltage tolerance10%
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Degree of protection (NEMA)12
Supporting protocol for SafetyBUS pNo
Max. output voltage240V
Supporting protocol for PROFIsafeNo
Integrated breaking resistanceYes
Supporting protocol for BACnetNo
Nominal output current I2N3.3A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

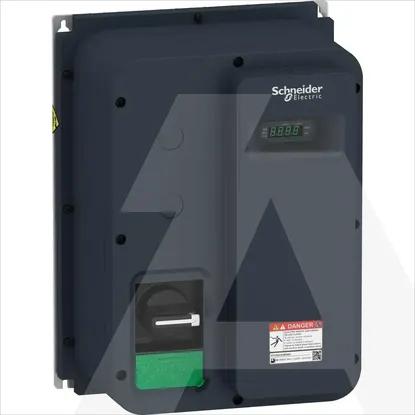

ATV320U04M2WS | Frek. Pret. ATV320 0,37KW 200V 1PH Vario
