Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Width250mm
Number of digital outputs3
Number of digital inputs7
Number of HW-interfaces RS-2320
With control elementYes
Number of analogue inputs3
Supporting protocol for LONNo
Depth200mm
Number of HW-interfaces USB0
Number of HW-interfaces RS-4851
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4220
Number of HW-interfaces parallel0
Height340mm
Number of analogue outputs1
Number of HW-interfaces industrial Ethernet0
With optical interfaceNo
Supporting protocol for KNXNo
Supporting protocol for PROFIBUSYes
Supporting protocol for ModbusYes
Supporting protocol for TCP/IPYes
Degree of protection (IP)IP66
Supporting protocol for CANYes
Supporting protocol for DeviceNetYes
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for ASINo
Supporting protocol for INTERBUSNo
Supporting protocol for SUCONETNo
Supporting protocol for Data-HighwayNo
With PC connectionYes
Type of converterU converter
4-quadrant operation possibleYes
Supporting protocol for SERCOSNo
Number of interfaces PROFINET0
Mains frequency50/60 Hz
Supporting protocol for other bus systemsYes
Mains voltage380 - 500V
Number of HW-interfaces other1
Integrated breaking resistanceYes
Number of phases output3
Number of phases input3
Application in domestic- and commercial area permittedNo
Supporting protocol for DeviceNet SafetyNo
Max. output at linear load at rated output voltage0.55kW
Application in industrial area permittedYes
Max. output frequency599Hz
Supporting protocol for AS-Interface Safety at WorkNo
Relative symmetric net voltage tolerance10%
Relative symmetric net frequency tolerance5%
Supporting protocol for EtherNet/IPYes
Max. output at quadratic load at rated output voltage0.55kW
Supporting protocol for PROFINET IOYes
Degree of protection (NEMA)4X
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET CBANo
Supporting protocol for SafetyBUS pNo
Supporting protocol for Foundation FieldbusNo
Max. output voltage500V
Supporting protocol for BACnetNo
Nominal output current I2N1.9A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

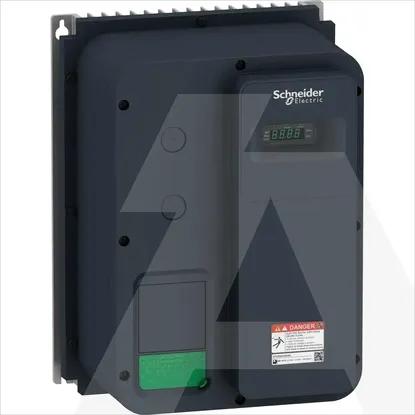

ATV320U06N4W | Frek. Pret. ATV320 0,55KW 400V 3PH IP66
