Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Number of analogue outputs1
Number of HW-interfaces parallel0
Number of HW-interfaces RS-4220
With control elementYes
Number of digital inputs7
Height340mm
Supporting protocol for LONNo
Depth235mm
Number of digital outputs3
Number of HW-interfaces RS-4851
Width250mm
Number of analogue inputs3
Number of HW-interfaces RS-2320
Number of HW-interfaces USB0
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces serial TTY0
With optical interfaceNo
Number of HW-interfaces other1
Supporting protocol for ASINo
Supporting protocol for TCP/IPYes
Application in industrial area permittedYes
Degree of protection (IP)IP66
Supporting protocol for KNXNo
Number of phases output3
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for CANYes
Supporting protocol for PROFIBUSYes
Type of converterU converter
Integrated breaking resistanceYes
Mains frequency50/60 Hz
Number of interfaces PROFINET0
Supporting protocol for DeviceNetYes
Supporting protocol for INTERBUSNo
Number of phases input1
Supporting protocol for SERCOSNo
4-quadrant operation possibleYes
Supporting protocol for other bus systemsYes
Supporting protocol for ModbusYes
Mains voltage200 - 240V
Supporting protocol for SUCONETNo
With PC connectionYes
Max. output at linear load at rated output voltage1.1kW
Application in domestic- and commercial area permittedNo
Supporting protocol for Data-HighwayNo
Max. output frequency599Hz
Supporting protocol for AS-Interface Safety at WorkNo
Relative symmetric net voltage tolerance10%
Max. output at quadratic load at rated output voltage1.1kW
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFINET IOYes
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFIsafeNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for Foundation FieldbusNo
Supporting protocol for BACnetNo
Degree of protection (NEMA)4X
Supporting protocol for SafetyBUS pNo
Nominal output current I2N6.9A
Relative symmetric net frequency tolerance5%
Max. output voltage240V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

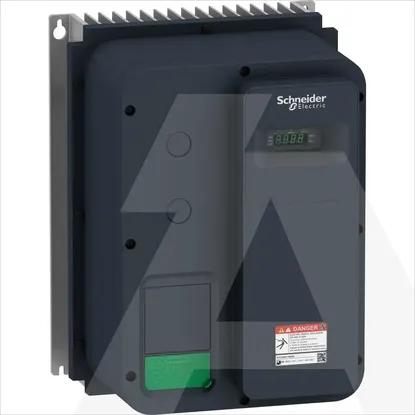

ATV320U11M2W | Frek. Pret. ATV320 1,1KW 200V 1PH
