Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •SCHNEIDER
Technical specifications
Width250mm
Number of analogue inputs3
Height340mm
Supporting protocol for INTERBUSNo
Depth235mm
Number of HW-interfaces RS-2320
Supporting protocol for PROFIBUSYes
Number of HW-interfaces other1
Number of HW-interfaces USB0
Number of digital outputs3
Number of digital inputs7
Number of analogue outputs1
Number of HW-interfaces industrial Ethernet0
With control elementYes
Number of HW-interfaces RS-4851
Supporting protocol for CANYes
With optical interfaceNo
Number of HW-interfaces RS-4220
Supporting protocol for LONNo
Supporting protocol for ASINo
Number of HW-interfaces serial TTY0
Number of HW-interfaces parallel0
Supporting protocol for KNXNo
Supporting protocol for TCP/IPYes
Supporting protocol for Data-HighwayNo
Supporting protocol for ModbusYes
Number of phases output3
Supporting protocol for SERCOSNo
Number of phases input3
Supporting protocol for SUCONETNo
Supporting protocol for DeviceNetYes
Integrated breaking resistanceYes
Relative symmetric net frequency tolerance5%
Degree of protection (IP)IP66
4-quadrant operation possibleYes
Application in domestic- and commercial area permittedNo
Max. output at quadratic load at rated output voltage2.2kW
Type of converterU converter
Number of interfaces PROFINET0
Mains frequency50/60 Hz
With PC connectionYes
Application in industrial area permittedYes
Supporting protocol for INTERBUS-SafetyNo
Relative symmetric net voltage tolerance10%
Supporting protocol for other bus systemsYes
Mains voltage380 - 500V
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for EtherNet/IPYes
Max. output at linear load at rated output voltage2.2kW
Max. output frequency599Hz
Supporting protocol for BACnetNo
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET IOYes
Supporting protocol for SafetyBUS pNo
Nominal output current I2N5.5A
Max. output voltage500V
Supporting protocol for Foundation FieldbusNo
Degree of protection (NEMA)4X
Supporting protocol for PROFINET CBANo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

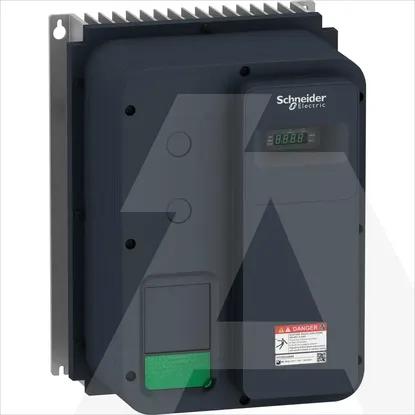

ATV320U22N4W | Frek. Pret. ATV320 2,2KW 400V 3PH IP66
