Details

  • •Low-voltage industrial components

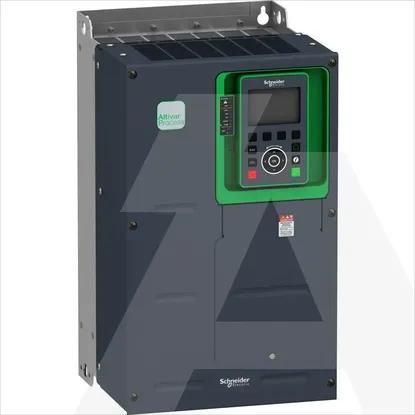

  • •Frequency converter =< 1 kV
  • •Minimum order quantity: 1 pcs
  • •SCHNEIDER

Technical specifications

Depth242mm
Width246mm
Height420mm
Number of analogue outputs2
With control elementNo
Number of analogue inputs3
Supporting protocol for LONNo
Number of digital outputs0
Number of HW-interfaces industrial Ethernet0
Number of digital inputs6
Number of HW-interfaces RS-4852
Number of HW-interfaces RS-4220
Number of HW-interfaces RS-2320
Number of HW-interfaces serial TTY0
With optical interfaceNo
Mains frequency50/60 Hz
Supporting protocol for ModbusYes
Number of HW-interfaces USB0
With PC connectionNo
Supporting protocol for PROFIBUSYes
Supporting protocol for TCP/IPYes
Number of HW-interfaces parallel0
Supporting protocol for Data-HighwayNo
Supporting protocol for DeviceNetYes
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUSNo
Supporting protocol for ASINo
Supporting protocol for other bus systemsNo
Supporting protocol for KNXNo
Supporting protocol for SUCONETNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for CANYes
Number of HW-interfaces other0
Integrated breaking resistanceNo
Supporting protocol for EtherNet/IPYes
Application in industrial area permittedNo
Supporting protocol for Foundation FieldbusNo
Type of converterU converter
Max. output frequency500Hz
Relative symmetric net frequency tolerance5%
Max. output at quadratic load at rated output voltage18.5kW
Relative symmetric net voltage tolerance10%
Supporting protocol for BACnetNo
Max. output voltage690V
Supporting protocol for DeviceNet SafetyNo
Application in domestic- and commercial area permittedNo
Number of interfaces PROFINET0
4-quadrant operation possibleNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for PROFIsafeNo
Supporting protocol for PROFINET CBANo
Supporting protocol for SafetyBUS pNo
Supporting protocol for PROFINET IONo
Degree of protection (IP)IP21
Mains voltage500 - 690V
Number of phases output2
Number of phases input3
Max. output at linear load at rated output voltage18.5kW
Nominal output current I2N24A
