Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •SOCOMEC
Technical specifications
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally closed contact0
Colour control elementBlack
Number of poles3
Type of control elementDoor coupling rotary drive
Version as safety switchYes
Rated operation power at AC-23, 400 V280kW
InterlockableYes
Version as main switchYes
Suitable for front mounting centreNo
Number of switches1
Degree of protection (IP), front sideIP65
Motor drive integratedNo
Suitable for floor mountingYes
Suitable for front mounting 4-holeYes
Version as emergency stop installationYes
Type of electrical connection of main circuitBolt connection
Rated operating voltage400 - 415V
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq-kA
Rated permanent current Iu630A
Version as maintenance-/service switchYes
Rated short-time withstand current lcw13kA
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC1000V
Motor drive optionalNo
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V630A
Voltage release optionalNo
Version as reversing switchNo
Switching power at 400 V280kW
Rated permanent current at AC-23, 400 V630A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

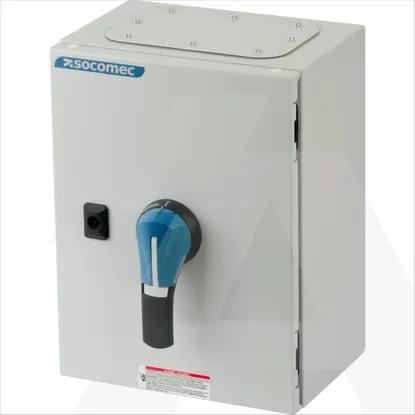

30325063 | CT LBS 3PN 630A IP65 S2N
