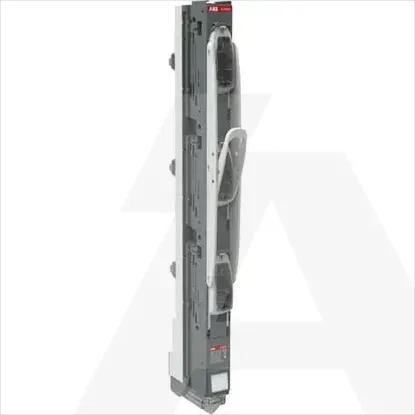

1SEP620010R3160 | ZLBM00-3P-Z-AL FUSE SWITCH DISCONNECTOR
Code: 1856818
ManufacturerABB
Catalog number1SEP620010R3160
TypeZLBM00-3P-Z-Al
CategoryFuse switch disconnector
EAN code7025840093244
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryFloor (bottom)
Version as emergency stop installationNo
Version as main switchNo
Conditioned rated short-circuit current Iq100kA
Degree of protection (IP), front sideIP30
Type of control elementOther
Motor drive integratedNo
Version as safety switchNo
Type of electrical connection of main circuitCable clamp
Rated short-time withstand current lcw-kA
Motor drive optionalNo
Rated operation power at AC-23, 400 V-kW
Position control elementFront side
Equipped with connectorsNo
With error protectionNo
Suitable for busbar mountingYes
Suitable for floor mountingNo
Suitable for front mountingNo
Rated permanent current Iu160A
Number of poles3
Suitable for fusesNH00
Max. rated operation voltage Ue AC690V
