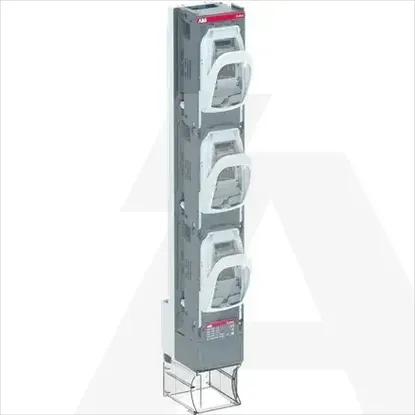

1SEP620012R1100 | ZLBM2-1P-Z-M12 FUSE SWITCH DISCONNECTOR
Code: 1856828
ManufacturerABB
Catalog number1SEP620012R1100
TypeZLBM2-1P-Z-M12
CategoryFuse switch disconnector
EAN code7025840089629
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryFloor (bottom)
Version as emergency stop installationNo
Version as main switchNo
Conditioned rated short-circuit current Iq100kA
Type of electrical connection of main circuitBolt connection
Type of control elementOther
Motor drive integratedNo
Degree of protection (IP), front sideIP30
Motor drive optionalNo
Version as safety switchNo
Position control elementFront side
Suitable for busbar mountingYes
Equipped with connectorsNo
Suitable for floor mountingNo
Rated short-time withstand current lcw-kA
Rated operation power at AC-23, 400 V-kW
With error protectionNo
Suitable for front mountingNo
Rated permanent current Iu400A
Number of poles3
Suitable for fusesNH2
Max. rated operation voltage Ue AC690V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SEP620012R1100 | ZLBM2-1P-Z-M12 FUSE SWITCH DISCONNECTOR
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Floor (bottom)
Version as emergency stop installation
Version as main switch
Conditioned rated short-circuit current Iq
100kA
Type of electrical connection of main circuit
Bolt connection
Type of control element
Other
Motor drive integrated
Degree of protection (IP), front side
IP30
Motor drive optional
Version as safety switch
Position control element
Front side
Suitable for busbar mounting
Equipped with connectors
Suitable for floor mounting
Rated short-time withstand current lcw
-kA
Rated operation power at AC-23, 400 V
-kW
With error protection
Suitable for front mounting
Rated permanent current Iu
400A
Number of poles
3
Suitable for fuses
NH2
Max. rated operation voltage Ue AC
690V
