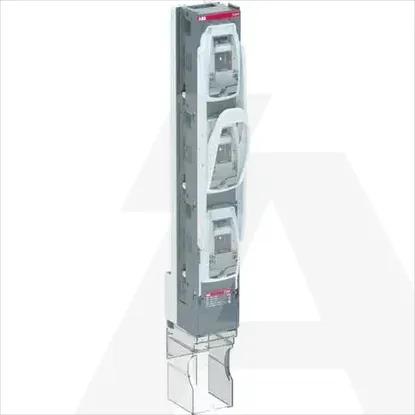

1SEP620013R3100 | ZLBM3-3P-Z-M12 FUSE SWITCH DISCONNECTOR
Code: 1856845
ManufacturerABB
Catalog number1SEP620013R3100
TypeZLBM3-3P-Z-M12
CategoryFuse switch disconnector
EAN code7025840089933
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Type of control elementOther
Degree of protection (IP), front sideIP30
Type of electrical connection of main circuitBolt connection
Conditioned rated short-circuit current Iq100kA
Cable entryFloor (bottom)
Version as emergency stop installationNo
Motor drive integratedNo
Version as safety switchNo
Version as main switchNo
Suitable for floor mountingNo
Position control elementFront side
Motor drive optionalNo
Rated operation power at AC-23, 400 V-kW
Rated short-time withstand current lcw-kA
Equipped with connectorsNo
Suitable for front mountingNo
Suitable for busbar mountingYes
With error protectionNo
Rated permanent current Iu630A
Number of poles3
Suitable for fusesNH3
Max. rated operation voltage Ue AC690V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
