Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryFloor (bottom)
Rated permanent current Iu160A
Number of poles3
Suitable for fusesNH00
Degree of protection (IP), front sideIP30
Motor drive integratedNo
Conditioned rated short-circuit current Iq100kA
Version as emergency stop installationNo
Version as main switchNo
Rated short-time withstand current lcw-kA
Rated operation power at AC-23, 400 V-kW
Suitable for front mountingNo
Type of control elementOther
Type of electrical connection of main circuitCable clamp
Version as safety switchNo
Suitable for floor mountingNo
Suitable for busbar mountingYes
With error protectionNo
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Equipped with connectorsNo
Position control elementFront side
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

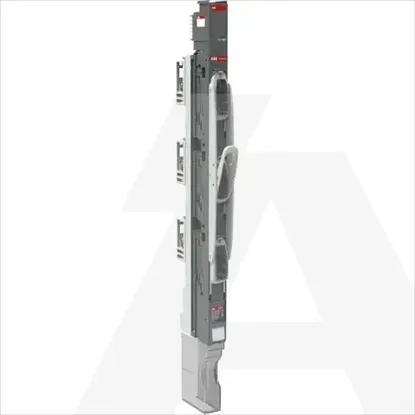

1SEP620020R3021 | ZHBM00-3P-V-EFM
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Fuse switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Cable entry
Floor (bottom)
Rated permanent current Iu
160A
Number of poles
3
Suitable for fuses
NH00
Degree of protection (IP), front side
IP30
Motor drive integrated
Conditioned rated short-circuit current Iq
100kA
Version as emergency stop installation
Version as main switch
Rated short-time withstand current lcw
-kA
Rated operation power at AC-23, 400 V
-kW
Suitable for front mounting
Type of control element
Other
Type of electrical connection of main circuit
Cable clamp
Version as safety switch
Suitable for floor mounting
Suitable for busbar mounting
With error protection
Max. rated operation voltage Ue AC
690V
Motor drive optional
Equipped with connectors
Position control element
Front side
