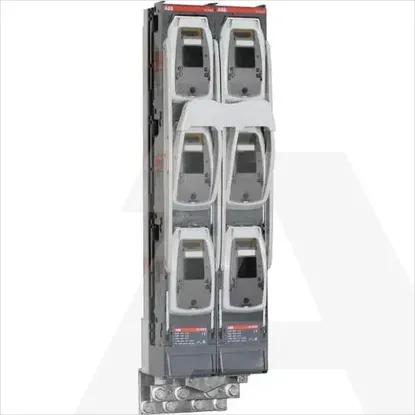

1SEP620025R3000 | ZHBM1250A-3P-M12
Code: 1856880
ManufacturerABB
Catalog number1SEP620025R3000
TypeZHBM1250A-3P-M12
CategoryFuse switch disconnector
EAN code7025840090175
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryFloor (bottom)
Motor drive integratedNo
Degree of protection (IP), front sideIP30
Conditioned rated short-circuit current Iq100kA
Type of control elementOther
Version as emergency stop installationNo
Version as safety switchNo
Version as main switchNo
Type of electrical connection of main circuitBolt connection
Suitable for front mountingNo
Rated short-time withstand current lcw-kA
Suitable for floor mountingNo
Position control elementFront side
Rated operation power at AC-23, 400 V-kW
With error protectionNo
Suitable for busbar mountingYes
Motor drive optionalNo
Equipped with connectorsNo
Rated permanent current Iu1250A
Number of poles3
Suitable for fusesNH3
Max. rated operation voltage Ue AC500V
