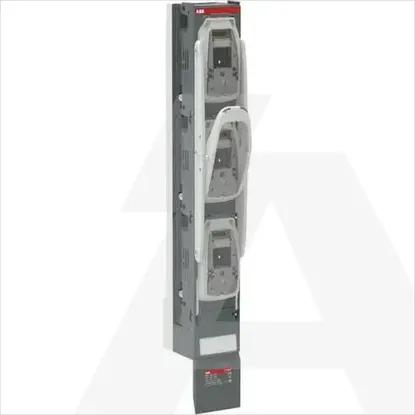

1SEP620173R3200 | ZLBM3-L-3P-3U-M12
Code: 1856893
ManufacturerABB
Catalog number1SEP620173R3200
TypeZLBM3-L-3P-3U-M12
CategoryFuse switch disconnector
EAN code7025840093190
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Version as emergency stop installationNo
Type of control elementOther
Degree of protection (IP), front sideIP30
Motor drive integratedNo
Cable entryFloor (bottom)
Type of electrical connection of main circuitBolt connection
Conditioned rated short-circuit current Iq100kA
Rated short-time withstand current lcw-kA
Suitable for front mountingNo
Position control elementFront side
Version as main switchNo
Equipped with connectorsNo
Rated operation power at AC-23, 400 V-kW
Version as safety switchNo
Motor drive optionalNo
Suitable for busbar mountingYes
With error protectionNo
Suitable for floor mountingNo
Rated permanent current Iu630A
Number of poles3
Suitable for fusesNH3
Max. rated operation voltage Ue AC690V
