Details
- •Low-voltage industrial components

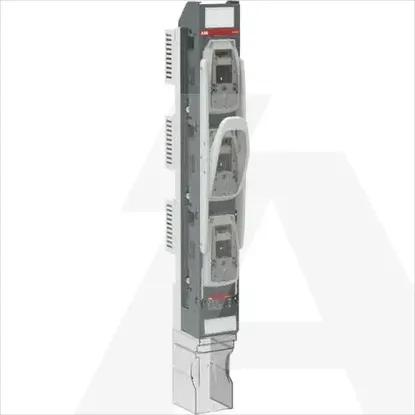

- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Suitable for fusesNH3
Version as emergency stop installationNo
Number of poles3
Degree of protection (IP), front sideIP30
Type of electrical connection of main circuitBolt connection
Type of control elementOther
Version as main switchNo
Motor drive integratedNo
Conditioned rated short-circuit current Iq100kA
Cable entryFloor (bottom)
Rated permanent current Iu630A
Equipped with connectorsNo
Version as safety switchNo
With error protectionNo
Suitable for busbar mountingYes
Rated short-time withstand current lcw-kA
Max. rated operation voltage Ue AC690V
Rated operation power at AC-23, 400 V-kW
Motor drive optionalNo
Suitable for front mountingNo
Suitable for floor mountingNo
Position control elementFront side
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SEP622003R0001 | ZHBM3-3P-M12-LH-CS
