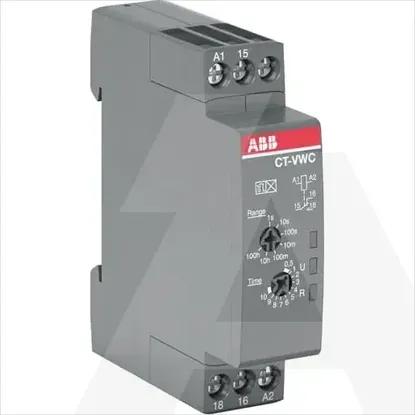

Details
- •Relays
- •Timer relay
- •1 KOM
- •ABB
Technical specifications
Nominal current4A
Width17.5mm
Function floating contact on energizationYes
Clock function, starting with pause, variableNo
Function delay-on energizationNo
Remote operation possibleNo
Function flashing, starting with pulse, fixed timeNo
Clock function, starting with pulse, variableNo
Function flashing, starting with pause, fixed timeNo
Depth63mm
With plug-in socketNo
Suitable as remote controlNo
Suitable for front mountingNo
Height70mm
With semiconductor outputNo
Function delay on de-energizationNo
Rated control supply voltage Us at AC 50HZ24 - 240V
Number of outputs, undelayed, normally open contact0
Function floating contact on de-energizationNo
Rated control supply voltage Us at AC 60HZ24 - 240V
Number of outputs, undelayed, normally closed contact0
Rated control supply voltage Us at DC24 - 48V
Function pulse shapingNo
Function star-deltaNo
Type of electric connectionScrew connection
Time range0.05 - 360000s
Pluggable on auxiliary contact blockNo
Voltage type for actuatingAC/DC
Number of outputs, delayed, normally open contact0
Outputs, reversible delayed/undelayedNo
Number of outputs, delayed, change-over contact1
Suitable for DIN rail (top hat rail) mountingYes
Number of outputs, delayed, normally closed contact0
Number of outputs, undelayed, change-over contact1
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
1SVR508130R0000 | CT-VWC.12
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Timer relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Nominal current
4A
Width
17.5mm
Function floating contact on energization
Clock function, starting with pause, variable
Function delay-on energization
Remote operation possible
Function flashing, starting with pulse, fixed time
Clock function, starting with pulse, variable
Function flashing, starting with pause, fixed time
Depth
63mm
With plug-in socket
Suitable as remote control
Suitable for front mounting
Height
70mm
With semiconductor output
Function delay on de-energization
Rated control supply voltage Us at AC 50HZ
24 .. 240V
Number of outputs, undelayed, normally open contact
0
Function floating contact on de-energization
Rated control supply voltage Us at AC 60HZ
24 .. 240V
Number of outputs, undelayed, normally closed contact
0
Rated control supply voltage Us at DC
24 .. 48V
Function pulse shaping
Function star-delta
Type of electric connection
Screw connection
Time range
0.05 .. 360000s
Pluggable on auxiliary contact block
Voltage type for actuating
AC/DC
Number of outputs, delayed, normally open contact
0
Outputs, reversible delayed/undelayed
Number of outputs, delayed, change-over contact
1
Suitable for DIN rail (top hat rail) mounting
Number of outputs, delayed, normally closed contact
0
Number of outputs, undelayed, change-over contact
1
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
