Details
- •Relays
- •Timer relay
- •1 KOM
- •ABB
Technical specifications
Width17.5mm
Height80mm
Depth63mm
Function delay-on energizationNo
Function delay on de-energizationNo
Type of electric connectionScrew connection
Function flashing, starting with pause, fixed timeNo
Function floating contact on energizationNo
Function star-deltaNo
Function pulse shapingNo
Function floating contact on de-energizationNo
With plug-in socketNo
Time range0.05 - 360000s
Remote operation possibleNo
Clock function, starting with pause, variableNo
Clock function, starting with pulse, variableNo
Voltage type for actuatingAC/DC
Number of outputs, undelayed, normally closed contact0
Rated control supply voltage Us at AC 50HZ24 - 240V
Rated control supply voltage Us at AC 60HZ24 - 240V
Number of outputs, undelayed, normally open contact0
Suitable as remote controlNo
Rated control supply voltage Us at DC24 - 48V
Number of outputs, delayed, change-over contact2
Pluggable on auxiliary contact blockNo
Number of outputs, delayed, normally open contact0
Number of outputs, undelayed, change-over contact2
Number of outputs, delayed, normally closed contact0
Function flashing, starting with pulse, fixed timeNo
Outputs, reversible delayed/undelayedNo
Suitable for front mountingNo
Suitable for DIN rail (top hat rail) mountingYes
With semiconductor outputNo
Nominal current4A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

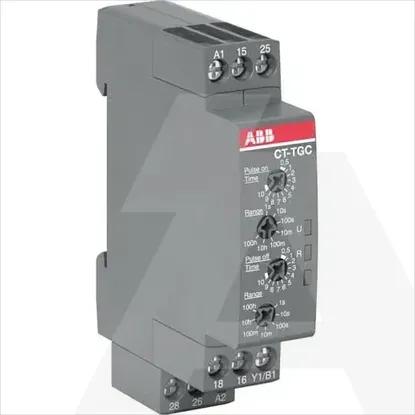

1SVR508160R0100 | CT-TGC.22
Details
- Relays
- Timer relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Width
17.5mm
Height
80mm
Depth
63mm
Function delay-on energization
Function delay on de-energization
Type of electric connection
Screw connection
Function flashing, starting with pause, fixed time
Function floating contact on energization
Function star-delta
Function pulse shaping
Function floating contact on de-energization
With plug-in socket
Time range
0.05 .. 360000s
Remote operation possible
Clock function, starting with pause, variable
Clock function, starting with pulse, variable
Voltage type for actuating
AC/DC
Number of outputs, undelayed, normally closed contact
0
Rated control supply voltage Us at AC 50HZ
24 .. 240V
Rated control supply voltage Us at AC 60HZ
24 .. 240V
Number of outputs, undelayed, normally open contact
0
Suitable as remote control
Rated control supply voltage Us at DC
24 .. 48V
Number of outputs, delayed, change-over contact
2
Pluggable on auxiliary contact block
Number of outputs, delayed, normally open contact
0
Number of outputs, undelayed, change-over contact
2
Number of outputs, delayed, normally closed contact
0
Function flashing, starting with pulse, fixed time
Outputs, reversible delayed/undelayed
Suitable for front mounting
Suitable for DIN rail (top hat rail) mounting
With semiconductor output
Nominal current
4A
