Details
- •Relays
- •Timer relay
- •1 KOM
- •ABB
Technical specifications
Width17.5mm
Height80mm
Depth63mm
Function delay-on energizationNo
Function floating contact on energizationNo
Function flashing, starting with pause, fixed timeNo
With plug-in socketNo
Type of electric connectionScrew connection
Function pulse shapingNo
Function floating contact on de-energizationNo
Clock function, starting with pause, variableNo
Clock function, starting with pulse, variableNo
Remote operation possibleNo
Function star-deltaYes
Rated control supply voltage Us at AC 50HZ24 - 240V
Rated control supply voltage Us at AC 60HZ24 - 240V
Suitable as remote controlNo
Function delay on de-energizationNo
Voltage type for actuatingAC/DC
Rated control supply voltage Us at DC24 - 48V
Time range0.05 - 600s
Number of outputs, undelayed, normally closed contact0
Number of outputs, delayed, normally closed contact0
Number of outputs, undelayed, normally open contact2
Pluggable on auxiliary contact blockNo
Function flashing, starting with pulse, fixed timeNo
Number of outputs, undelayed, change-over contact0
Number of outputs, delayed, change-over contact0
Number of outputs, delayed, normally open contact2
Outputs, reversible delayed/undelayedNo
Suitable for DIN rail (top hat rail) mountingYes
With semiconductor outputNo
Suitable for front mountingNo
Nominal current4A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

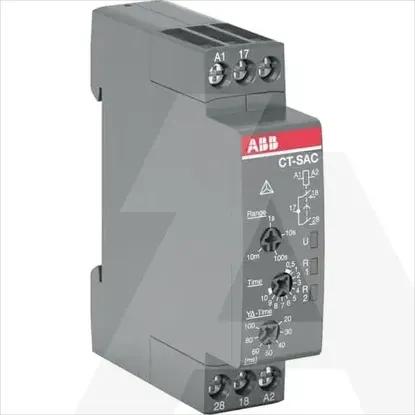

1SVR508210R0100 | CT-SAC.22
Details
- Relays
- Timer relay
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Width
17.5mm
Height
80mm
Depth
63mm
Function delay-on energization
Function floating contact on energization
Function flashing, starting with pause, fixed time
With plug-in socket
Type of electric connection
Screw connection
Function pulse shaping
Function floating contact on de-energization
Clock function, starting with pause, variable
Clock function, starting with pulse, variable
Remote operation possible
Function star-delta
Rated control supply voltage Us at AC 50HZ
24 .. 240V
Rated control supply voltage Us at AC 60HZ
24 .. 240V
Suitable as remote control
Function delay on de-energization
Voltage type for actuating
AC/DC
Rated control supply voltage Us at DC
24 .. 48V
Time range
0.05 .. 600s
Number of outputs, undelayed, normally closed contact
0
Number of outputs, delayed, normally closed contact
0
Number of outputs, undelayed, normally open contact
2
Pluggable on auxiliary contact block
Function flashing, starting with pulse, fixed time
Number of outputs, undelayed, change-over contact
0
Number of outputs, delayed, change-over contact
0
Number of outputs, delayed, normally open contact
2
Outputs, reversible delayed/undelayed
Suitable for DIN rail (top hat rail) mounting
With semiconductor output
Suitable for front mounting
Nominal current
4A
