Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V4kW
InterlockableYes
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Rated operating voltage690 - 690V
Number of switches-
Conditioned rated short-circuit current Iq-kA
Degree of protection (IP), front sideIP65
Number of poles3
Suitable for front mounting centreNo
Version as safety switchYes
Version as emergency stop installationNo
Suitable for front mounting 4-holeYes
Type of control elementShort thumb-grip
Type of electrical connection of main circuitScrew connection
Suitable for floor mountingNo
Version as main switchYes
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V7.5kW
Colour control elementRed
Rated short-time withstand current lcw1kA
Motor drive integratedNo
Rated permanent current Iu20A
Rated permanent current at AC-23, 400 V-A
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-21, 400 V20A
Max. rated operation voltage Ue AC400V
Switching power at 400 V8kW
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Motor drive optionalNo
Version as reversing switchNo
Voltage release optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

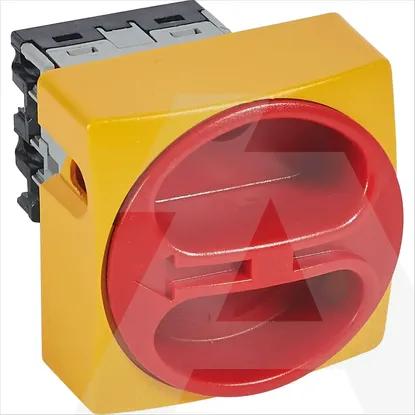

022101 | RASTAVNA SKLOPKA 3P 20A
