Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Rated permanent current Iu32A
Version as emergency stop installationNo
Number of poles3
Degree of protection (IP), front sideIP40
InterlockableNo
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V7.5kW
Rated operating voltage690 - 690V
Number of switches-
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Conditioned rated short-circuit current Iq10kA
Type of electrical connection of main circuitScrew connection
Version as main switchNo
Version as safety switchNo
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC400V
Rated short-time withstand current lcw1kA
Version as maintenance-/service switchNo
Suitable for floor mountingYes
Suitable for front mounting 4-holeYes
Suitable for front mounting centreYes
Rated operation power at AC-23, 400 V11kW
Suitable for distribution board installationNo
Rated permanent current at AC-21, 400 V32A
Motor drive optionalNo
Voltage release optionalNo
Switching power at 400 V12.8kW
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

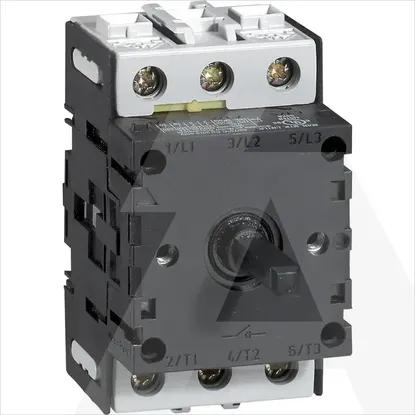

022130 | RASTAVNA SKLOPKA 32A
