Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Rated operation power at AC-3, 400 V15kW
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu50A
Version as emergency stop installationNo
Number of auxiliary contacts as change-over contact0
Number of poles3
InterlockableNo
Motor drive integratedNo
Number of switches-
Version as main switchNo
Version as maintenance-/service switchNo
Type of electrical connection of main circuitScrew connection
Version as safety switchNo
Suitable for floor mountingYes
Degree of protection (IP), front sideIP40
Rated operation power at AC-23, 400 V18.5kW
Rated short-time withstand current lcw1.8kA
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq10kA
Suitable for front mounting centreYes
Motor drive optionalNo
Suitable for front mounting 4-holeYes
Suitable for distribution board installationNo
Voltage release optionalNo
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-21, 400 V50A
Rated permanent current at AC-23, 400 V-A
Switching power at 400 V20kW
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

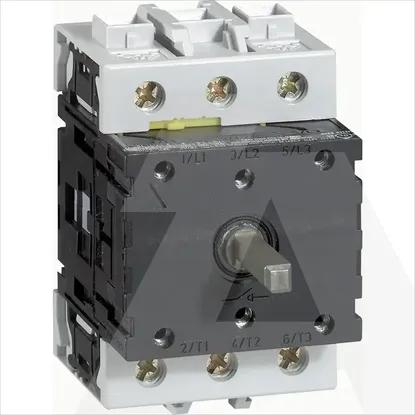

022140 | RASTAVNA SKLOPKA 50A
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Rated operation power at AC-3, 400 V
15kW
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Rated permanent current Iu
50A
Version as emergency stop installation
Number of auxiliary contacts as change-over contact
0
Number of poles
3
Interlockable
Motor drive integrated
Number of switches
-
Version as main switch
Version as maintenance-/service switch
Type of electrical connection of main circuit
Screw connection
Version as safety switch
Suitable for floor mounting
Degree of protection (IP), front side
IP40
Rated operation power at AC-23, 400 V
18.5kW
Rated short-time withstand current lcw
1.8kA
Rated operating voltage
690 .. 690V
Conditioned rated short-circuit current Iq
10kA
Suitable for front mounting centre
Motor drive optional
Suitable for front mounting 4-hole
Suitable for distribution board installation
Voltage release optional
Suitable for intermediate mounting
Max. rated operation voltage Ue AC
690V
Rated permanent current at AC-21, 400 V
50A
Rated permanent current at AC-23, 400 V
-A
Switching power at 400 V
20kW
Version as reversing switch
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
