Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq10kA
Number of poles3
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP40
Rated permanent current Iu80A
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of switches-
Rated operation power at AC-3, 400 V22kW
Motor drive integratedNo
InterlockableNo
Version as main switchNo
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
Version as safety switchNo
Rated operation power at AC-23, 400 V30kW
Rated short-time withstand current lcw2.8kA
Suitable for intermediate mountingNo
Suitable for distribution board installationNo
Suitable for floor mountingYes
Version as maintenance-/service switchNo
Suitable for front mounting centreYes
Suitable for front mounting 4-holeYes
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-21, 400 V80A
Voltage release optionalNo
Switching power at 400 V32kW
Motor drive optionalNo
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

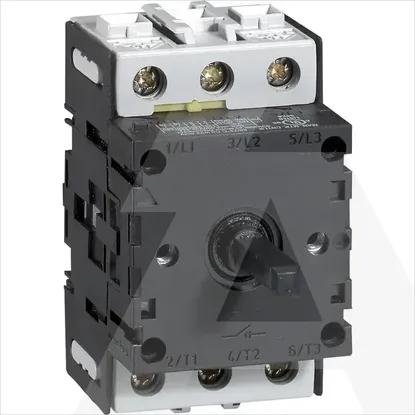

022170 | RASTAVNA SKLOPKA 80A
