Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •LEGRAND
Technical specifications
Rated operation power at AC-3, 400 V30kW
Number of poles3
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu100A
Number of auxiliary contacts as normally open contact0
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq10kA
Degree of protection (IP), front sideIP40
Number of switches-
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchNo
Motor drive integratedNo
Version as safety switchNo
Version as main switchNo
InterlockableNo
Suitable for distribution board installationNo
Voltage release optionalNo
Motor drive optionalNo
Type of electrical connection of main circuitScrew connection
Suitable for floor mountingYes
Rated permanent current at AC-21, 400 V100A
Rated operation power at AC-23, 400 V37kW
Suitable for front mounting 4-holeYes
Max. rated operation voltage Ue AC690V
Suitable for intermediate mountingNo
Suitable for front mounting centreYes
Version as emergency stop installationNo
Rated short-time withstand current lcw2.8kA
Rated permanent current at AC-23, 400 V-A
Version as reversing switchNo
Switching power at 400 V40kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

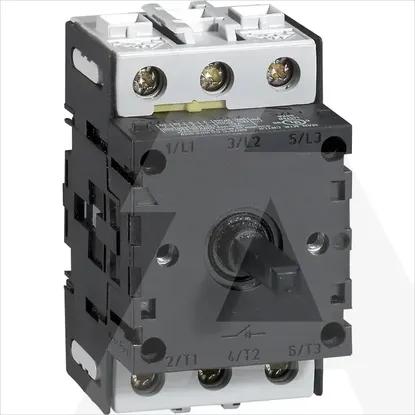

022180 | RASTAVNA SKLOPKA 100A
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Rated operation power at AC-3, 400 V
30kW
Number of poles
3
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
100A
Number of auxiliary contacts as normally open contact
0
Rated operating voltage
690 .. 690V
Conditioned rated short-circuit current Iq
10kA
Degree of protection (IP), front side
IP40
Number of switches
-
Number of auxiliary contacts as change-over contact
0
Version as maintenance-/service switch
Motor drive integrated
Version as safety switch
Version as main switch
Interlockable
Suitable for distribution board installation
Voltage release optional
Motor drive optional
Type of electrical connection of main circuit
Screw connection
Suitable for floor mounting
Rated permanent current at AC-21, 400 V
100A
Rated operation power at AC-23, 400 V
37kW
Suitable for front mounting 4-hole
Max. rated operation voltage Ue AC
690V
Suitable for intermediate mounting
Suitable for front mounting centre
Version as emergency stop installation
Rated short-time withstand current lcw
2.8kA
Rated permanent current at AC-23, 400 V
-A
Version as reversing switch
Switching power at 400 V
40kW
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
