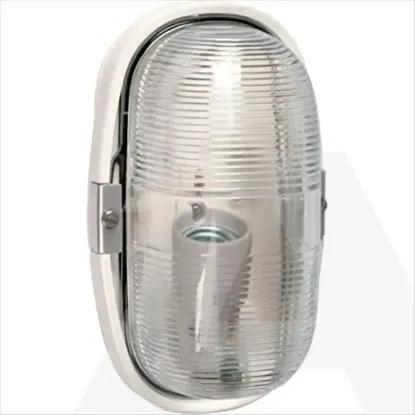

060477 | SVJETILJKA OVALNA E27 75W
Code: 1859920
Details
- •Luminaires
- •Ceiling-/wall luminaire
- •1 KOM
- •LEGRAND
Technical specifications
Degree of protection (IP)IP55
Voltage typeAC
Width120mm
Number of poles-
Impact strengthIK04
Material housingSteel
Length195mm
Built-in width-mm
Lamp holderE27
Nominal voltage110 - 230V
Lamp typeIncandescent lamp
Protection classI
Colour rendering index CRI90-100
Colour temperature2700 - 2700K
Power factor-
Max. system power75W
Dimming phase cut-offNo
Dimming phase cut-onNo
Rated luminous flux according to IEC 62722-2-11025lm
Dimming Touch and DimNo
Dimming manufacturer's proprietary systemNo
Dimming with push-buttonNo
Suitable for number of lamps1
Dimming LineSwitchNo
No dim functionYes
Dimming DSINo
Dimming mains voltage modulationNo
Dimming DMXNo
Height/depth122mm
With control gearNo
Dimming RFNo
Type of control gearNot required
Dimming Sine Wave ReductionNo
Dimming potentiometer (integrated)No
Rated ambient temperature according to IEC62722-2-1-10 - 40°C
Dimming DALINo
Beam angleExtreme wide beam >80°
Colour of lightWhite
Luminaire efficacy-lm/W
Luminaire with limited surface temperature, sign "D“No
Outer diameter-mm
Light sharingAsymmetric
LED nominal current at constant current326 - 681mA
With light sourceNo
Colour housingGrey
Dimming 0-10 VNo
Dimming programmableNo
Light distributorDiffuser lens/optic/panel
Dimming 1-10 VNo
Dimming ZigbeeNo
Dimming GPRSNo
Suitable for emergency lightingNo
Conductor cross section-mm²
Light outletDirect
Suitable for suspended mountingNo
Suitable for ceiling mountingYes
With light sensorNo
Rated life time L90/B10 at 25 °C-h
Material coverGlass structured
Suitable for surface mountingYes
Rated life time L80/B10 at 25 °C-h
Dimming depending on control gearNo
Built-in diameter-mm
Suitable for wall mountingYes
Rated life time L70/B50 at 25 °C-h
Suitable for light line configurationNo
Suitable for built-in mountingNo
With air slotsNo
With movement sensorNo
Suitable for workplace according to EN 12464-1No
Type of gridNone
Covering of the luminaire with thermally insulating material possibleNo
Built-in length195mm
Built-in height/depth-mm
Suitable for lamp power75 - 75W
Rated life time L70/B10 at 25 °C-h
Rated life time L80/B50 at 25 °C-h
Rated life time L90/B50 at 25 °C-h
