Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •LEGRAND
Technical specifications
Rated voltage230V
Release characteristicC
Rated current16A
Leakage current typeAC
Surge current capacity0.25kA
Voltage typeAC
Rated insulation voltage Ui-V
Rated fault current0.3A
Built-in depth44mm
Over voltage category-
Current limiting class3
Pollution degree2
Width in number of modular spacings2
Concurrently switching neutral conductorYes
Number of protected poles1
Frequency50 Hz
Degree of protection (IP)IP20
Rated short-circuit breaking capacity according to IEC 60947-26kA
Connectable conductor cross section multi-wired0.75 - 10mm²
Suitable for flush-mounted installationYes
Rated short-circuit breaking capacity Icn according to EN 61009-16kA
Anti-nuisance tripping versionNo
Number of poles (total)2
Rated short-circuit breaking capacity according to EN 610096kA
Connectable conductor cross section solid-core0.75 - 16mm²
Ambient temperature during operating- - -°C
With interlocking deviceYes
Rated impulse withstand voltage Uimp-kV
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

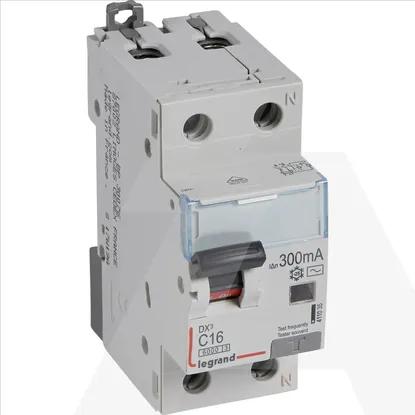

411035 | DX3 1PN D C16 6000A 300MA AC
