Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Selective protectionNo
Rated insulation voltage Ui500V
Short-time delayed trippingYes
With interlocking deviceYes
Connectable conductor cross section multi-wired0.75 - 35mm²
Rated impulse withstand voltage Uimp4kV
Mounting methodDIN rail
Pollution degree2
Width in number of modular spacings4
Short-circuit breaking capacity (Icw)10kA
Surge current capacity3kA
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
Built-in depth44mm
Connectable conductor cross section solid-core0.75 - 50mm²
Frequency50 Hz
Rated fault current300mA
Leakage current typeAC
Rated current40A
Number of poles4
Degree of protection (IP)IP20
Rated voltage400V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

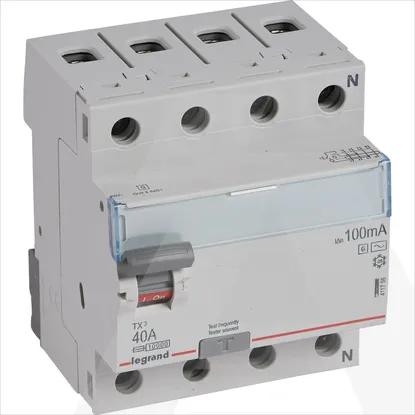

411756 | TX3 RCCB 4P D 40A 100MA AC-G
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- LEGRAND
DetailsTechnical specifications
Technical specifications
Selective protection
Rated insulation voltage Ui
500V
Short-time delayed tripping
With interlocking device
Connectable conductor cross section multi-wired
0.75 .. 35mm²
Rated impulse withstand voltage Uimp
4kV
Mounting method
DIN rail
Pollution degree
2
Width in number of modular spacings
4
Short-circuit breaking capacity (Icw)
10kA
Surge current capacity
3kA
Additional equipment possible
Ambient temperature during operating
-25 .. 60°C
Built-in depth
44mm
Connectable conductor cross section solid-core
0.75 .. 50mm²
Frequency
50 Hz
Rated fault current
300mA
Leakage current type
AC
Rated current
40A
Number of poles
4
Degree of protection (IP)
IP20
Rated voltage
400V
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
