Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Rated current63A
Rated voltage400V
Built-in depth44mm
Mounting methodDIN rail
Rated insulation voltage Ui500V
Leakage current typeAC
Degree of protection (IP)IP20
Number of poles4
Frequency50 Hz
Pollution degree2
Connectable conductor cross section multi-wired0.75 - 35mm²
Connectable conductor cross section solid-core0.75 - 50mm²
Rated fault current300mA
Surge current capacity3kA
Short-time delayed trippingYes
Rated impulse withstand voltage Uimp4kV
Width in number of modular spacings4
Short-circuit breaking capacity (Icw)10kA
Selective protectionNo
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
With interlocking deviceYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

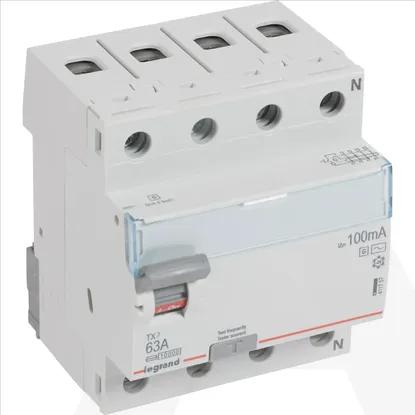

411757 | TX3 RCCB 4P D 63A 100MA AC-G
