Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •LEGRAND
Technical specifications
Rated insulation voltage Ui250V
Rated current63A
Rated voltage230V
Mounting methodDIN rail
Leakage current typeA
Built-in depth44mm
Selective protectionNo
Number of poles2
Rated fault current300mA
Short-circuit breaking capacity (Icw)10kA
Short-time delayed trippingNo
Surge current capacity0.25kA
Width in number of modular spacings2
Pollution degree2
Frequency50 Hz
Degree of protection (IP)IP20
Connectable conductor cross section multi-wired0.75 - 35mm²
With interlocking deviceYes
Additional equipment possibleYes
Ambient temperature during operating-25 - 60°C
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section solid-core0.75 - 50mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

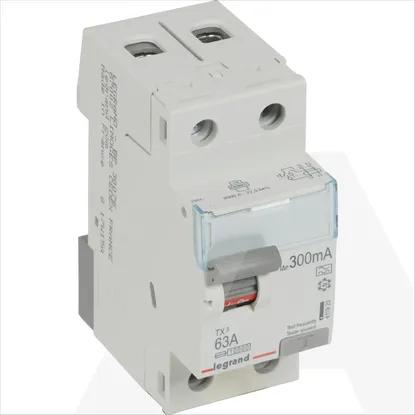

411923 | TX3 RCCB 2P 300MA A CEBEC
